Metal

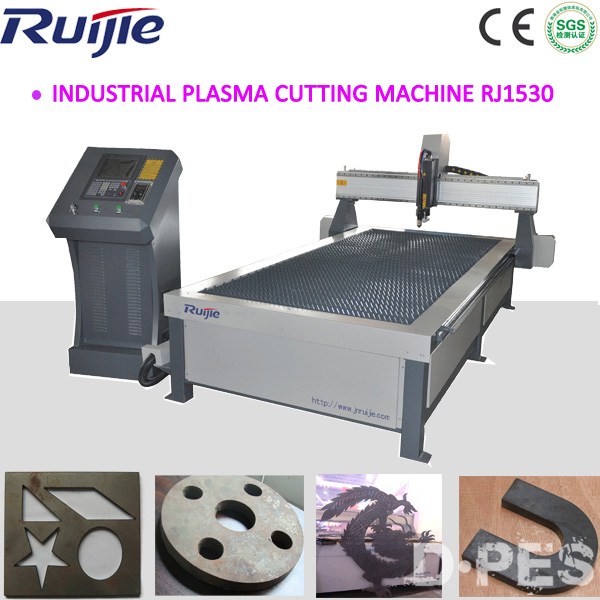

Plasma Cutting System RJ1530
Features:
1.Welded lathe bed of
thick-wall profiled steel, more solid and stable.
2.Reasonable
lathe table design, 10 mm thickness steel plates fixed on lathe table covered by
cast sheath with spikes. Steel plates will not be damaged even under raging
flame. The level difference of whole double-deck platform remains in
0-1.5mm.
3.Advanced
material inclined discharging design. All finished work pieces and fragments
slide into both sides of tunnel for safe and convenient
collection.
4.Panasonic
Servo motor, Taiwan servo speed reducing device and high accuracy rack gear
transmission.
5.Lower noise,
stable and accurate coordinate movement.
6.Start control
system made in Sino-US joint venture and Germany design Software FASTCAM with
auto material saving function.
7.American
Cut-Master power supply(Power: 40A/120A/200A) together with high sensitive arc
pressure adjuster.Self-adjusting to choose the best distance between plasma head
and work piece automatically in order to ensure cutting
accuracy.
8.Best choice
for all kinds of different thickness material and heterotypic sheet
cutting.
Applications:
Parts cutting, thickness material and heterotypic sheet cutting.
Parameters:
|
Mode
|
1530
|
|
Processing Materials
|
Iron,aluminum,galvanized sheet,white steel plate,titanium plate
|
|
Working Area
|
1300mm x 2500mm
|
|
Cutting Thickness
|
40A(0.5-10mm) 120A(3-16mm) 200A(3-35mm)
|
|
Cutting Speed
|
8000mm/min
|
|
Moving Speed
|
50000mm/min
|
|
Power
|
8.5KW-10.5KW
|
|
Input Voltage
|
3 phase 380V
|
|
Power Frequency
|
50HZ
|
|
Flies Transfer
|
USB interface
|
|
Arc
|
Untouched Arc Striking Arc Pressure Adjuster
|
Main parts
picture:
Samples pictures:
Packing details:
Factory Show and
Exhibition Picture:
Our Service:
1.
One year warranty, free service if there is any problem during the warranty period.
2. 24 hours online service each day, free technical support.
3. Engineers available to
service machinery overseas.
