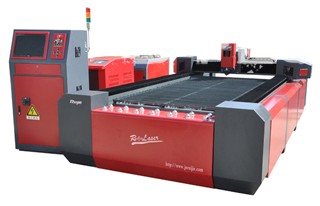

This product applied YAG solid laser optical path system which has the features of better laser mode, thin cutting gap,
and high accuracy. And to suits the cutting of metal material like Titanium plate, mild steel, Iron, and stainless steel, the
product equipped imported tracing system which is highly sensitive. The induction type auto anti-strike laser head is adaptable, flexible, automatic, and have limitless simulate cutting ability.
The Servo motors, ball screws, and linear guide rails which are imported with original package not only ensure the faster
cutting speed,better edge effect, and higher accuracy than similar products, but also ensure the stability and reliability of the machine’s working.
The product can be edit from computer and cutting software. Both Input and output are from computer. On the basis of
windows interfere, we can realize the edit and complete one-time cutting of any shapes, letters, and numbers.
Applications:
1. The heat affected zone is small, not easy to distort, with smooth cutting seam,and no need further processing.
2.High precision: Suitable for precise parts cutting and all kinds of
process words, pictures subtle cutting.
3. High Cutting Speed: Nearly 100 times than the wire cutting.
4. Cost-effective, stable performance, to ensure continued production
5. Solid YAG laser is one of the most stable and mature products in
the laser field.
Technical Parameters:
|
Machine Model
|
YAG500
|
|
Working Size
|
According to Customer’s Requirement can be adjustable)
|
|
Cutting Depth
|
0.2mm-500mm(Carbon Steel)0.2mm-3mm(Stainless Steel)
|
|
Laser Output Power
|
500w
|
|
Laser Wavelength
|
1064nm
|
|
Pulse Frequency
|
1-500Hz,Each File 1 Hz
|
|
Minimum Line Width
|
0.15mm
|
|
Power Allocation
|
380V/50HZ/100A
|
|
XY Z Geometric Positioning Accuracy
|
≤± 0.08mm/1000mm
|
|
X Y Z Reposition Accuracy
|
≤±0.04mm
|
|
Cooling System
|
5P Water Cooling
|
|
Max Cutting Speed
|
3000mm/min
|
|
Machine Noise (m/min)
|
≤65
|
|
X Y Max Moving Speed (m/min)
|
30m/min(Single Axe 40m/min
|
