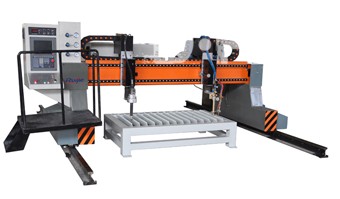

Features:
1.Gantry applies butt weld structure. All the welded parts were stabilized under high temperature to avoid structure distortion.
2.Both X and Y axis applied high precision rack and gear tramsmission .
3.The application of Taiwan linear rails in X axis and special steel rails with dedicate process ensures the stability,high accuracy,and long life usage of the machine.
4.Nc process control system is easy to operate and useful.
5.Planetary reducer to ensure the movement accuracy and balance.
6.Compatible with Fastcam software which can enhance the cutting edge smooth and save material.
Application:
Widely used in engineering Machinery ,shipbuilding Industry ,Mining Machinery,Thick Metal Contour Cutting,Rivet Welding Industry.
Technical Parameter
|
Parameters
|
2500mm
|
3000mm
|
3500mm
|
4000mm
|
5000mm
|
6000mm
|
7000mm
|
8000mm
|
|
Drive mode
|
Dual Sides Drive
|
|
Cutting width
|
1800mm
|
2300mm
|
2800mm
|
3300mm
|
4300mm
|
5300mm
|
6300mm
|
7300mm
|
|
Track Length(L)
|
10m or as customer’s requirement
|
|
Cutting length
|
2m less than track length
|
|
Moving speed
|
Dual-Side drive:12000mm/min
|
|
Cutting speed
|
Flame cutting speed:50-800mm/min
|
|
Cutting thickness
|
Mild steel:1-120mm
|
|
Torch Carriages
|
1-6 Group(According to custome’s requirement)
|
|
Cutting torch lifting travel
|
200mm,(Optional)300mm
|
|
Cutting height
|
(Optional)Automatic torch height control
|
|
Control system
|
Sh-2200 Starfire sh-2200
|
|
Required voltage
|
Three phase 380V ,50HZ,Single phase(control system)220V,50-60hHZ
|
