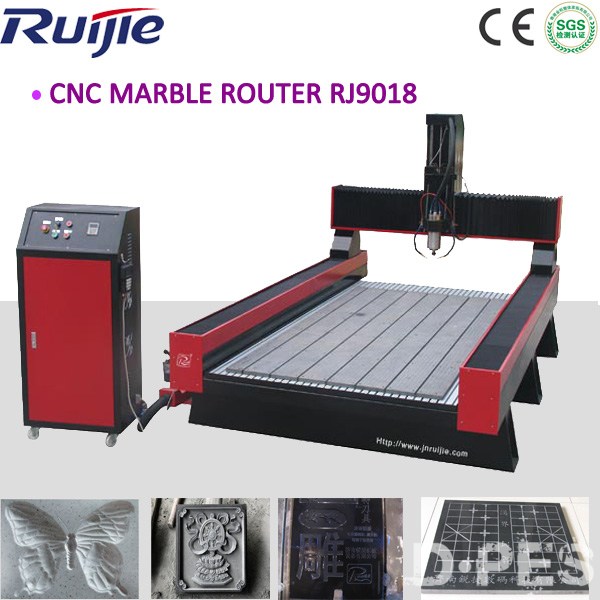

CNC Marble
Polishing Machine RJ9018
Features:
1.Profiled
steel welded lathe bed, stabilizing treated under high temperature ensures
minimum distortion, excellent rigidity and vigorous strength.
2.Precise
traveling of Y axis driven by double motors ensures stable performance of
machine.
3.High
precision rack gear transmission ensures high accuracy, fast speed and strong
power.
4.Imported
square linear guide rail ensures high accuracy , maximum work load and long
service time.
5. Best
mechanical and electrical design with well-selected brand parts minimize
breakdown rate.
6.Configured
with water tank and automatic cooling water supply system.
7.Overall
dust-proof and water-proof design protects all moving.
Parameters:
|
Model Name
|
RJ9015
|
|
Working Area(X*Y*Z)
|
900x
1500x 300mm
|
|
Engraving depth
|
150mm
|
|
Max engraving speed
|
3000mm/min
|
|
Traveling Accuracy
|
<0.05/300min
|
|
Command Language
|
G Code
|
|
Spindle
|
3.0kw Water Cooling
|
|
Converter
|
3.0kw
|
|
Driver
|
Fuling
|
|
Control System
|
DSP
|
|
Tool diameter
|
φ3.175, φ6, φ12.7
|
|
XYZ Guide Rails
|
Linear Square Rail
|
|
Transmission
|
Rack Gear of X.Y axis, Ball Screw of Z axis
|
|
Drain system
|
Water tank
|
|
water cooling system
|
Water pump
|
|
Dust system
|
Dust-proof
|
|
Supported Format and Software
|
PLT,DST,DXF,BMP, AI ; Support AutoCAD, Corel Draw output directly
|
|
Warranty
|
one year
|
|
Optional Equipment
|
Multi spindles
|
|
DSP handle
|
Main parts
picture:
Samples
pictures:
Packing
details:
Factory
Show and Exhibition Pictures:
Our
Services:
1.
One year warranty, free service if there is any problem during the warranty period.
2. 24 hours online service each day, free technical support.
3. Engineers available to service machinery
overseas.
